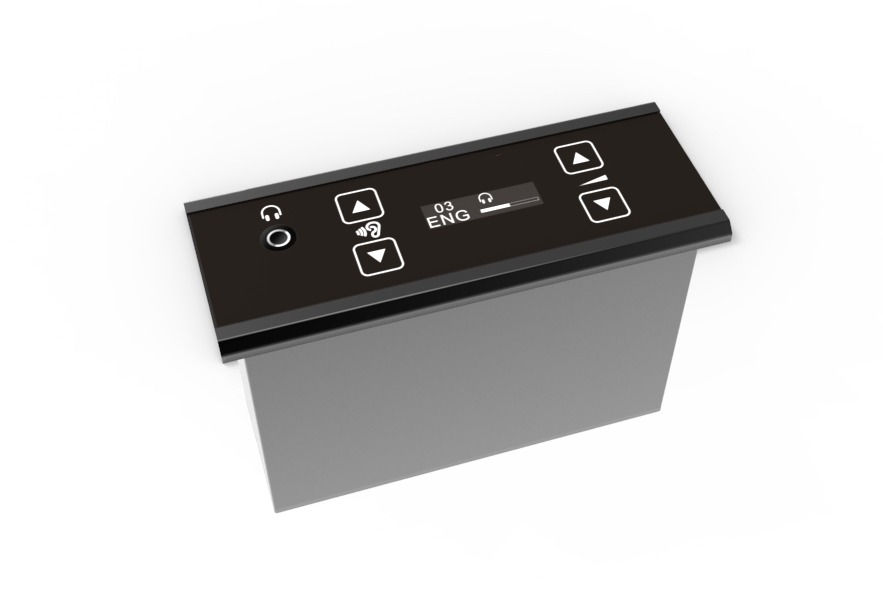

DX-LSU Language Selection Unit
Digital conference system network Flush-mounting 64 Channels Selector Unit
Two touch-buttons(up/down) for channel selection
Two touch-buttons(up/down) for headphone volume controlOLED display for channels and volume information
One CAT5e cable to transmit up 64 channels audio and other signals.
Compliance with IEC 60914, GBT 15381-94


DX-LSU Language Selection Unit

  • The development and design of Digii® DX-LSU selector are based on over 20 years expertise in conference system design.

    The system is scalable and more than 200 units can be linked to one processor. Supports interpretation function with 64 channels selector which displays the language and channel number(Insert the earphone and the channel selector is active).

  • Interfaces

    • 3.5mm stereo audio jacket on front for headphone
    • 2x RJ45 connectors for daisy chain
    • RJ11 socket for VIS-DVU-FS1 or VIS-DVU-FS2
    • RJ11 and 3.5mm socket for VIS-DCC-FS/ VIS-DCD-FS
    • Technical Parameters
    • Button: Touchable interface, no physical buttons
    • Maximum power consumption: 1.8W
    • Headphone load: 16Ω
    • headphone volume: 10mW
    • Headphone jack: 3.5mm stereo

    Input impedance: 2kΩ

    SNR: 70dB

    Frequency response: 20 ~ 20000Hz

    Weight: 0.1kg

    Dimension: 100W × 40H× 65H mm

    Operating temperature: 0 ℃ to + 55 ℃

    Color: Black
